6DOF Motion Sim

Parts List (18 items)

•

  Ball Screw SFU1610 750mm

  $38.90 × 6= $233.40
  Buy
•

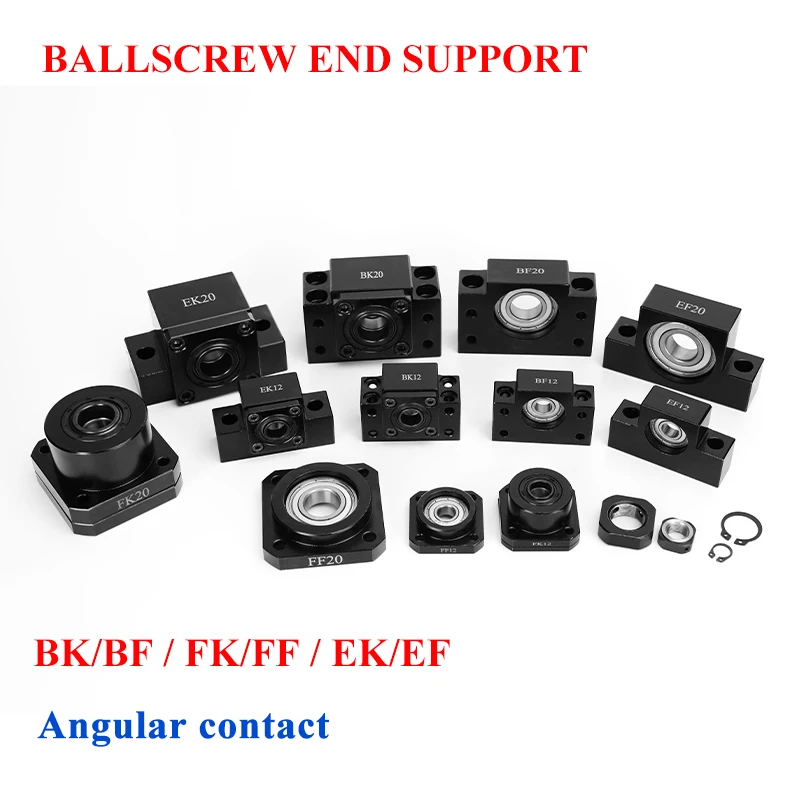

  FK12

  $7.99 × 6= $47.94
  Buy
•

  Servo Motor 80AST + T3D Driver

  $108.69 × 6= $652.14
  Buy
•

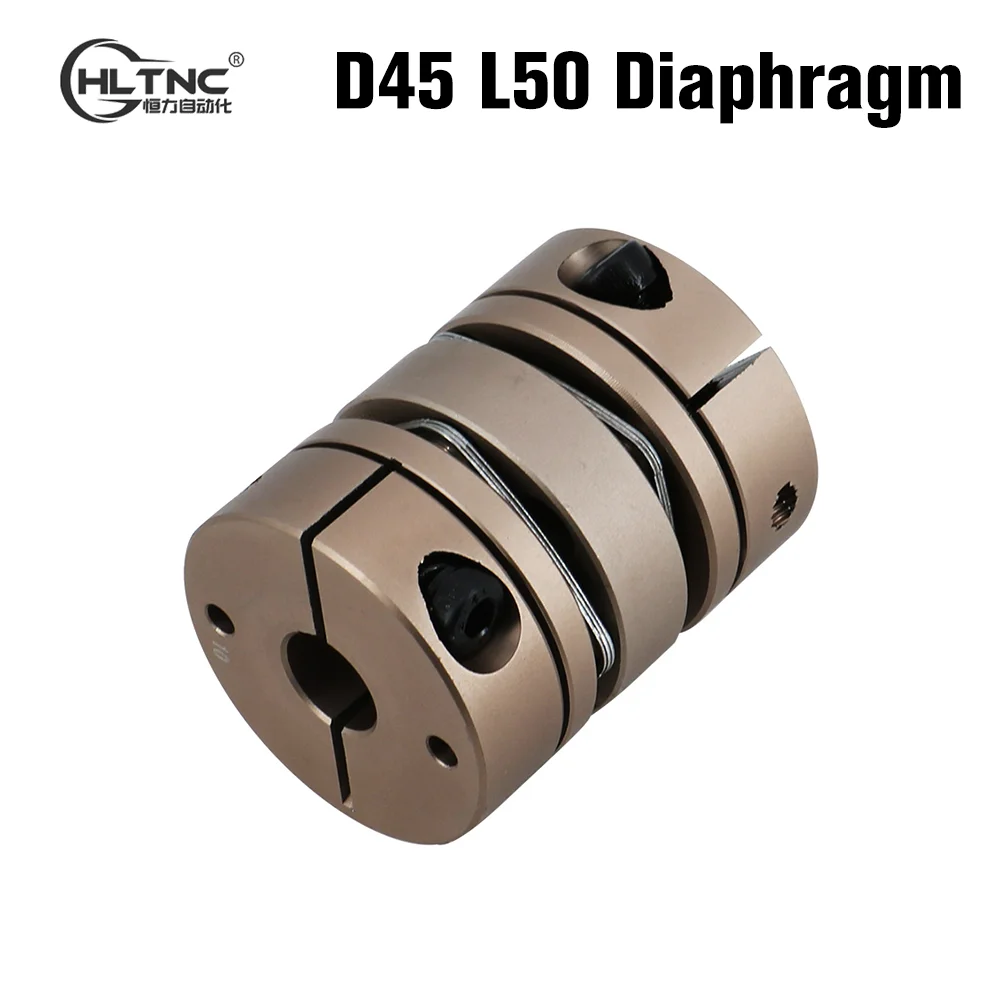

  Motor Coupling D45 L50 19 10

  $5.19 × 6= $31.14
  Buy
•

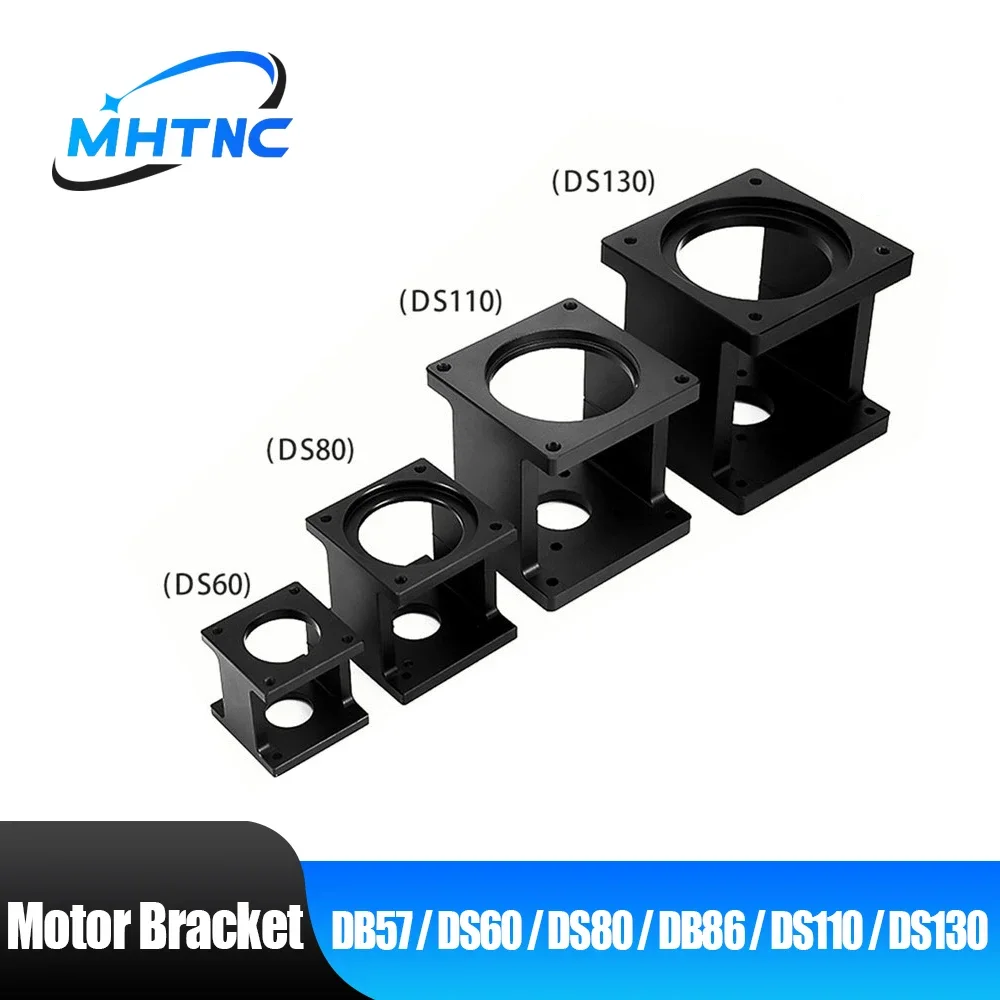

  Servo Motor Support DS80

  Warning: You need to adjust this part, since it doesn't fit perfectly

  $11.99 × 6= $71.94
  Buy
•

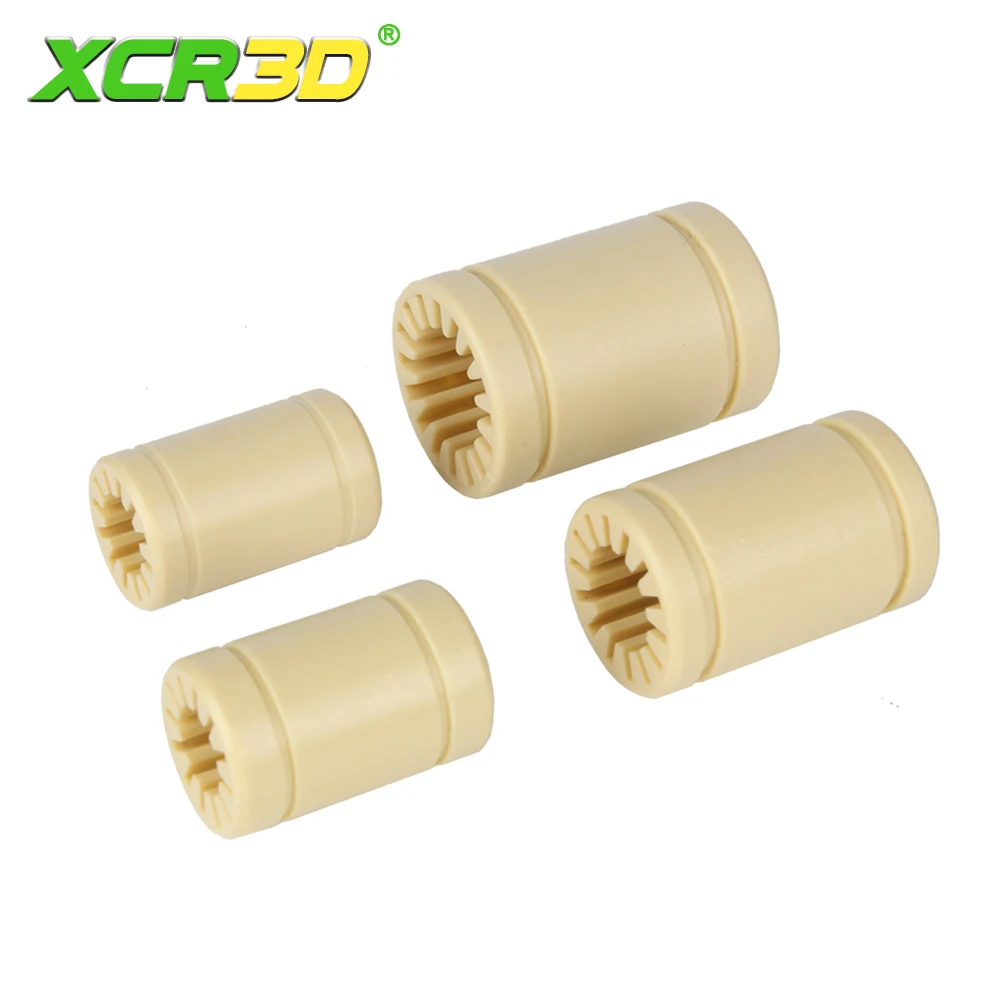

  RJMP 01 12

  5 Sets of 4pcs

  $0.97 × 18= $17.46
  Buy
•

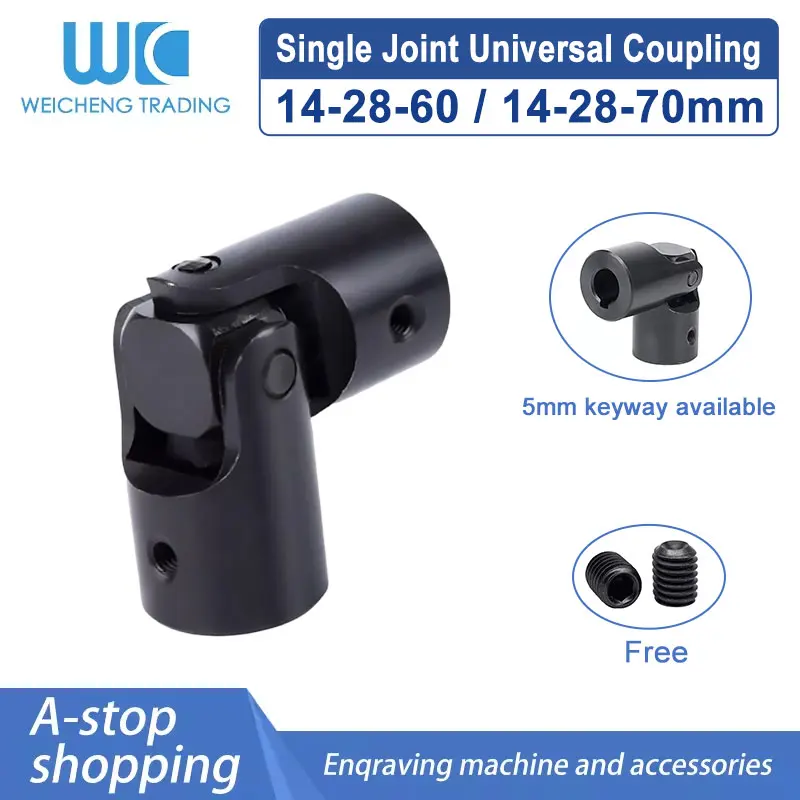

  U Joint 14x28x60

  $5.69 × 6= $34.14
  Buy
•

  6800 Bearings

  $2.12 × 6= $12.72
  Buy
•

  Rod End Joint Bearing SA10 10mm

  $1.78 × 6= $10.68
  Buy
•

  ESP32 S3

  $6.79 × 1
  Buy
•

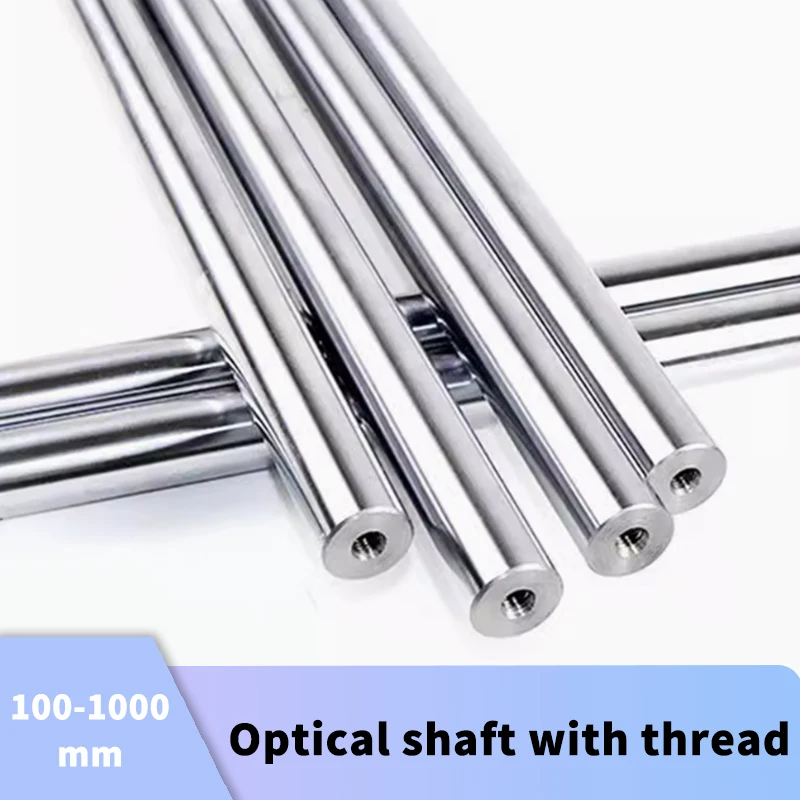

  Optical Shaft Threaded 700mm OD12 M5

  9 Sets of 2pcs

  $13.69 × 18= $246.42
  Buy
•

  Optical Shaft Threaded 730mm OD8 M5

  6 Sets of 2pcs

  $13.69 × 12= $164.28
  Buy
•

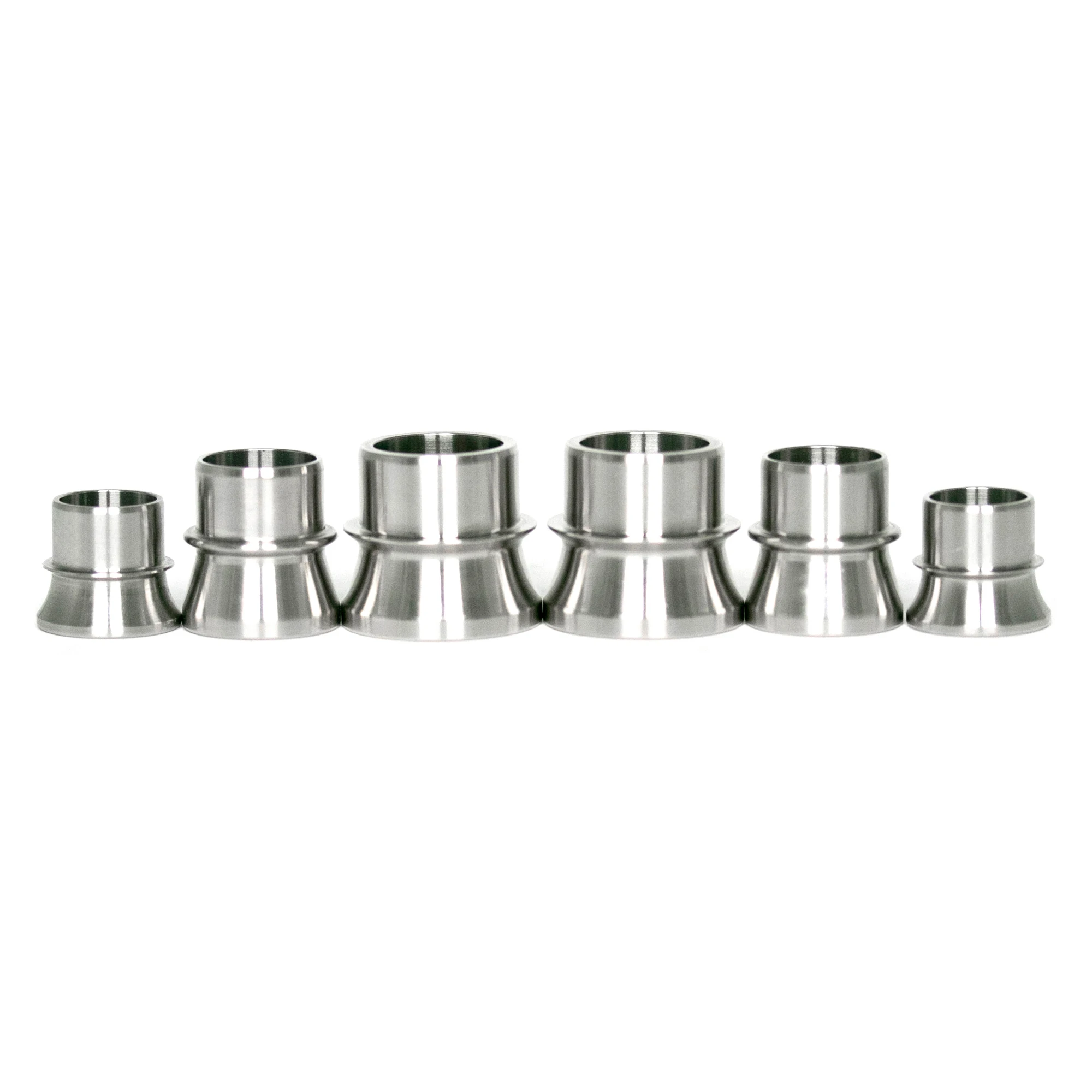

  Spacer M10 to M8

  6 Sets of 2pcs

  $0.94 × 12= $11.28
  Buy
•

  Aluminum 4080-1695

  $49.16 × 1
  Buy
•

  Aluminum 4080-863

  $25.00 × 2= $50.00
  Buy
•

  Aluminum 4080-580

  $16.84 × 1
  Buy

• 3D Print Parts

  Material: ABS. Warning: Ball Nut Mount is critical part need has a strong material

  $20.00 × 6= $120.00
  Buy

• 6DOF Base

  I built my own base using iron with the same dimensions is more cheap

  $150.00 × 1
